4K60 DP KVM Fiber Extender

4K60 DP KVM Fiber Extender,4K60 DP KVM optical fiber transmission,4K60 DP KVM optical transceiver,4K60 DP KVM Multi Service Transmission System

4K60 DP KVM Fiber Extender,4K60 DP KVM optical fiber transmission,4K60 DP KVM optical transceiver,4K60 DP KVM Multi Service Transmission System
  • Product Introduction

  • 1. Product Introduction

    The 4K60 DP KVM Fiber Extender, developed and produced by Beijing HCSTCOM Co., Ltd, can transmit 10-80km through single mode optical fiber. It supports point-to-point connection. Support 1 channel DP1.2 HD video, 1 channel 3.5mm audio, 1 channel bidirectional infrared transmission, 1 channel data RS232, and 1 channel USB keyboard and mouse KVM function, can achieve remote control and management through USB mouse and keyboard. It is mainly used in outdoor advertising, projection fusion, command center, remote monitoring system, research and development security system and remote conference.



    2. Main Features

    ·Support Display Port 1.2 standard, compatible with DP 1.0.

    ·Support 4K60 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200;

    ·1 channel 3.5mm analog audio (support transmitter audio embed, receiver audio unembed)

    ·Support 1-ch Bidirectionalinfrared transmission, 3.5mm interface;

    ·Supports 1-ch USB mouse and keyboard for remote control and management;

    ·Support 1-ch Bidirectional RS232 transmission and control (Optional);

    ·Using latest video lossless transmission technology, high reliability;

    ·Single-mode fiber transmission 10-80KM, multi-mode 0-2KM;

    ·The CWDM technology can realize 1-8 channel DP single-fiber transmission;

    ·Support 4U rack mounting and desktop PC optional.



    3. Technical Parameter

    Parameter

    TX

    RX

    DP Version

    DP 1.2, DP 1.0

    HDCP version

    HDCP1.3

    Optical Interface

    SFP Optical Interface (LC/PC)

    The wavelength is 1310NM

    Transmission Distance

    Single mode 10-80 km, multi-mode 0-2 km

    Band Width

    18Gbps

    Resolution Supported

    1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600、1280*720P 50/60Hz、 1920*1080P 25/30/60Hz 、3840*2160 30/60Hz、4096*2160 60Hz

    Audio Format

    LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH

    HDR10（YUV4:4:4）

    Support

    EDID unvarnished transmission

    Support

    KVM

    USB1.1, Mouse & Keyboard

    TMDS Input

    0.7~1.2Vp-p

    DDC Input

    5Vp-p

    Input

    DP In x1，DC2.1×1,

    USB-A ×1,  3.5×1

    DC2.1×1,   RJ45×1,

     USB-A×2，3.5×1

    Output

     RJ45 ×1，3.5×1

     DP Out ×1, 3.5×1

    RS232

    3PIN Green terminal /DB9

    3PIN Green terminal /DB9

    IR Interface

    Bidirection, 3.5mm

    Bidirection, 3.5mm

    DP Interface

    Standard DP interface

    Mechanical Parameter

    TX

    RX

    Material

    Metals

    Size

    150.0(L) x 120(W) x 28(H)mm

    Net Weight

    260g

    260g

    Power Specification

    12V/1A

    12V/1A

    Power Consumption

    5W

    5W

    Operating Temperature

    0～50℃

    Storage Temperature

    -30～70℃

    Relative Humidity

    0～90% (RH)

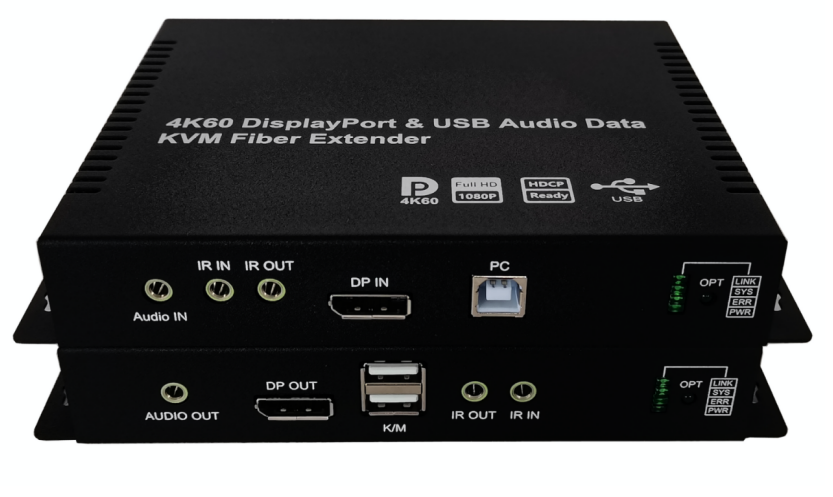

    4. Product Picture
