4K DP KVM Extender Over Fiber/ CAT6

4K DP KVM Fiber Extender,4K DP KVM optical fiber transmission,4K DP KVM optical transceiver,4K DP KVM Multi Service Transmission System

4K DP KVM Fiber Extender,4K DP KVM optical fiber transmission,4K DP KVM optical transceiver,4K DP KVM Multi Service Transmission System
  • Product Introduction

  • 1. Product Introduction

    The 4K30 DP KVM Fiber Extender, developed and produced by Beijing HCSTCOM Co., Ltd, can transmit 10-80km through single mode optical fiber. It supports point-to-point connection. Support 1 channel 4K DP1.2 HD video, 1 channel 3.5mm audio, 1 channel bidirectional RS232, 1 channel reverse infrared control, 1 channel reverse boot, and 1 channel USB2.0 KVM function, can achieve remote control and management through the USB mouse and keyboard. It is mainly used in the development of security systems, command centers, video conferencing systems, computer room KVM and remote conferencing.



    2. Main Features

    ·Support transmitter 1ch DP input, receiver 1ch DP output

    ·1ch forward 3.5 analog audio, 1ch reverse MIC audio;

    ·Support 1ch bidirectional RS232;

    ·Support 1ch reverse boot (optional);

    ·Support 1ch reverse infrared control;

    ·Support USB2.0 mouse and keyboard to achieve remote control and management;

    ·Support USB2.0 U disk and printer signal transmission;

    ·Support DP1.2, compatible with DP1.0;

    ·4K30 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200;

    ·Single-mode fiber transmission 10-80KM, multi-mode 0-550M;

    ·Support 4U rack mounting and desktop PC optional;

    ·Support two transmission modes of cable or optical fiber, free switching; (CAT6 cable transmission 120-140 meters)



    3. Technical Parameter

    Parameter

    TX

    RX

    DP Version

    Display Port DP 1.2, DP 1.0

    HDCP version

    HDCP1.3

    Optical Interface

    SFP Optical Interface (LC/PC)

    wavelength 1310/1550NM

    Transmission Distance

    Single mode 10-80 km, multi-mode 0-550 m

    Band Width

    10Gbps

    Resolution Supported

    1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600、1280*720P 50/60Hz、1920*1080P 25/30/60Hz、3840*2160 30Hz

    Audio Format

    LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH

    EDID unvarnished transmission

    Support

    KVM

    USB2.0@ Mouse, keyboard, support U disk, printer

    TMDS Input

    0.7~1.2Vp-p

    DDC Input

    5Vp-p

    Input

    DP In x1, USB-A ×1, 3.5×1

    SFP×1, RJ45×1, USB-A×4, 3.5×2

    Output

     SFP×1, 3.5×1, RJ45*1

     DP Out ×1, 3.5×1

    RS232

    3PIN Green terminal

    3PIN Green terminal

    IR Interface

    Reverse, 3.5mm

    Reverse, 3.5mm

    DP Interface

    Standard DP interface

    Mechanical Parameter

    TX

    RX

    Material

    Metals

    Size

    150.0(L) x 120(W) x 28(H)mm

    Net Weight

    260g

    260g

    Power Specification

    12V/1A

    12V/1A

    Power Consumption

    5W

    5W

    Operating Temperature

    0～50℃

    Storage Temperature

    -30～70℃

    Relative Humidity

    0～90% (RH)

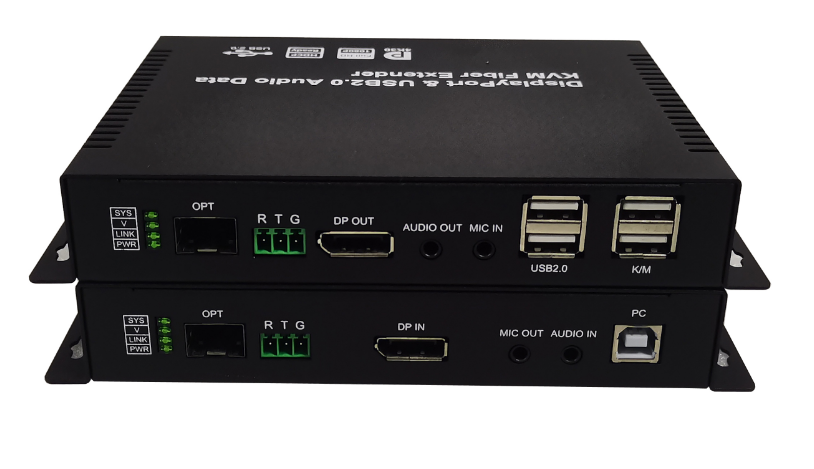

    4. Product Picture
