Location:Homepage / AV
All Product

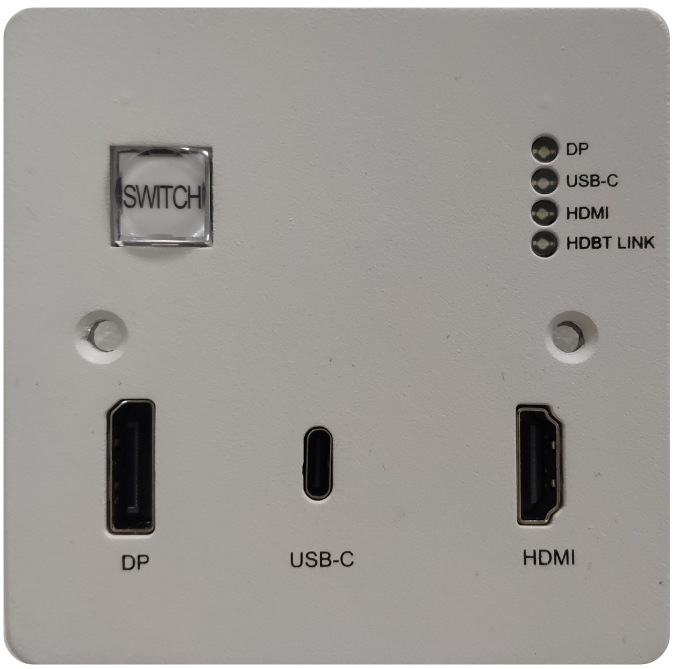

86Panel Wall Plug Transmitter HDMI+DP+USB-C

86 Panel Wall Plug Transmitter HDMI+DP+USB-C

86 Panel Wall Plug Transmitter HDMI+DP+USB-C

  • Product Introduction
  • 86 Panel Wall Plug Transmitter HDMI+DP+USB-C


    1. ProductIntroduction:

    86 Panel Wall Plug Transmitter HDMI+DP+USB-C, produced by Beijing HCSTCOM Co., Ltd, adopts a mixed input design and integrates the latest HDBaseT technology, can convert the input HDMI, DP, USB-C,three kinds of video signals into standard HDBaseT signal output. It supports POC power supply, which can be obtained through matrix or other HDBaseT devices, and it also come with DC12V power interface, support RS232 control. It can extend the HDMI, DP, USB-C signal transmission of 4K ultra-HD,1080P@60Hz,3D by 70/100 meters. This wall plug transmitter is idely used in video conferencing, large screen display and multimedia display control system, high-quality image display engineering, medical image display and projection system; Suitable for airports, railway stations, sports centers, hotels and other long-distance video and information transmission systems.



    2. Main Feature:

    ? Support HDMI, DP, USB-C signal 70/100 meters long distance transmission;
    ? Support bidirectional RS232 data transmission;
    ? HDMI supports4K@30Hz 3840*2160,1080P@60Hz 1920*1080, and 3D, 36bit color depth;
    ? Support POC power supply, use with HDBaseT receiving equipment, no need connect to external power supply;
    ? The signal switching function can be realized by pressing buttons on the panel. It can also be switched through the upper computer software;
    ? Standard 86 panel wall insert design, can be used with the floor insert box, table insert box;
    ? LED indicator shows switching status;


    3. ProductParameter:

    Name

    86 Panel Wall Plug Transmitter HDMI+DP+USB-C

    Input

    1×HDMI、1xDP、1xUSB-C、1xRS232

    Output

    1×HDBT

    Standard Protocol

    HDMI1.4

    Resolution

      480i ---1080p up to 4K@30Hz (4:4:4), 4K@60Hz (4:2:0)

    Transmission Distance

    70M/100M optional

    Size

    86*86*40 (mm)

    Weight

    260g

    Power Supply

      DC:12V,1A

    Power Dissipation

    8W

    Working Temperature

    -10℃ ~55℃

    Storage Temperature

    -20℃ ~60℃


    4. Product Ordering Information

    Model: HC-HHUD70Tx86

    Supports HDMI+DP+USB-C transmitting 70 meters at1080P@60Hz , 4K 35 meters;



    Model:HC-HHUD100Tx86

    Support HDMI+DP+USB-C transmitting 100 meters at1080P@60Hz , 4K 70 meters.
