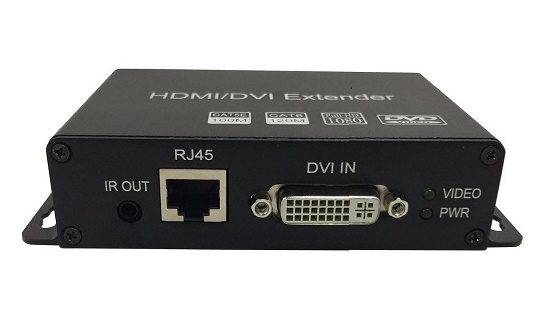

DVI Extender over Cat5/Cat6

DVI Extender over Cat5/Cat6, DVI Extender

DVI Extender over Cat5/Cat6, DVI Extender

  • Product Introduction

  • 1、Description

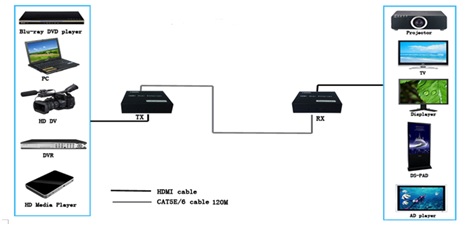

    DVI/HDMI Extender over cat5/cat6 extends HDMI/DVI signals to remote places. It could extend HDMI video signal up to 120 meter with normal 8 core cat5e/6/7 cable with 1080p resolution. High bandwidth, no loss, no delay, plays real time HD video at remote places. Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc

    2、Features

    Uncompressed production solution

    Support HDMI1.3; DVI 1.0

    Compatible with HDCP 1.2

    IEEE-568B standard

    Resolution:1080p/720p/576p//480p/@24/50/60fps

    Max 120meter with cat5 and cat6 cable

    CEC pass through

    Transmitter:  1 HDMI input, 1RJ45 out

    Receiver: 1HDMI output, 1RJ45 in

    3、Specification


    Items

    Specification

    Voltage/Current

    DC12V/1A

    Power consumption

    TX:＜3W     RX:＜3W

    HDMI compliance

    HDMI1.3

    HDCP compliance

    HDMI1.2

    HDMI input resolution supported

    480i@60Hz, 480p@60Hz, 576i@50Hz,

    576p@50Hz, 720p@50/60Hz,

    1080i@50/60Hz, 1080p@50/60Hz,

    HDMI output resolution supported

    480i@60Hz, 480p@60Hz, 576i@50Hz,

    576p@50Hz, 720p@50/60Hz,

    1080i@50/60Hz, 1080p@50/60Hz,

    Audio formats supported

    L/R stereo audio

    Maximum transfer rate

    4.5Gbps

    Input and output TMDS signal

    0.5～1.5Vp-p(TMDS)

    Input and output DDC signal

    5Vp-p(TTL)

    Transmission length

    120m

    Input cable length supported

    ≤8m(AWG24)

    Output cable length supported

    ≤8m(AWG24)

    IR remote control

    Supports IR passback with 20~60KHz frequancy

    Transfer method

    Over UTP/STP CAT5/5e/6

    Connector

    RJ45

    Electrostatic protection of the whole machine

    1a Contact discharge level 3

    1b Air discharge level 3

    Standard: IEC61000-4-2

    Working temperature

    0～50℃

    Storage temperature

    -10～70℃

    Humidity (no condensation)

    0～90%

    Dimension

    100(L) x80(W) x 281(H)mm

    Material

    Iron alloy material + crystal panel

    Finishing

    Grit blast

    Color

    Black

    Weight

    TX:150g,   RX:150g

    Mean time between failures (MTBF)

    >30000 Hours





    4、Applications:

    Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank, Digital FPDs and projectors in conference room and auditorium, Kiosk with digital FPDs showing full motion graphic displays from remote systems, PDP displays for information in public sites, LED signboards in streets and in stadiums
