AV Product

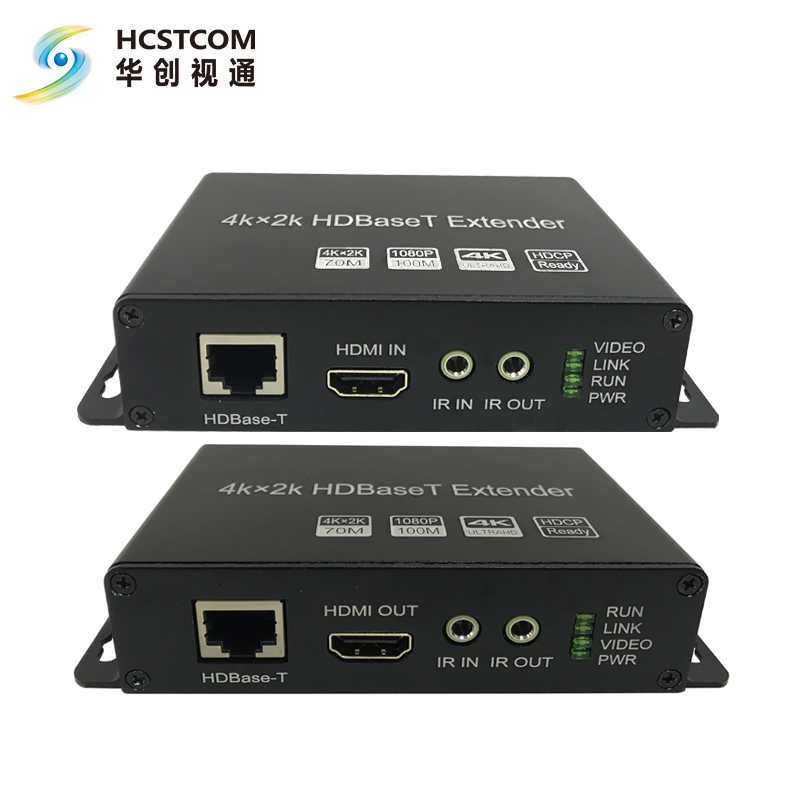

HDBaseT HDMI Extender over CAT6

HDBaseT HDMI Extender over CAT6

HDBaseT HDMI Extender over CAT6

  • Product Introduction
  • 1、Description
    HDBaseT HDMI Extender over Cat6 extends HDMI and IR signals to remote places. 4K*2K/30 meter,1080P/70m with normal 8 core cat6 cable, with high quality cables from top brands.High bandwidth, no loss, no delay, plays real time HD video at remote places. Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc

    2、Features
    Incorporates HDBaseT technology
    Support resolution up to Ultra HD 4Kx2K 60(4:2:0)
    Transmission distance [email protected]/30m,1080p/70m
    Support 3D、HDCP 1.3 compliant,CEC pass through
    Support wide-band Bi-directional IR (20KHZ to 60KHZ)
    IR extension from transmitter to receiver or from receiver to transmitter
    Support 3U rack mount for insert card

    3、Applications
    Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
    Digital FPDs and projectors in conference room and auditorium
    Kiosk with digital FPDs showing full motion graphic displays from remote systems
    PDP displays for information in public sites

    LED signboards in streets and in stadiums


    4、Specification

    Items

    Specification

    Transmitter

    1*HDMI in, 1*HDBaseT RJ45,1*IR in,

    1*IR out (RS232 optional)

    Receiver

    1*HDMI out, 1*HDBaseT RJ45,1*IR in,

    1*IR out (RS232 optional)

    HDMI input resolution supported

    DTV/HDTV 4K/1080P/1080i/720P/720i/576P

    HDMI output resolution supported

    Support DTS-HD, Dolby-HD (Repeater the source to the sink)

    IR remote control

    Support bidirectional infrared signal return

    HDMI compliance

    HDMI 1.4

    HDCP compliance

    HDCP 1.3

    Transmission length

    Max [email protected]/30m,1080p/70m

    Transfer method

    Overcat6

    Connector

    RJ45

    Voltage/Current

    DC12V/1A

    Power Consumption

    TX:2.5 Watts  RX: 5 Watts

    Power Supply

    TX and RX both have external power adapter

    Working temperature

    -25~65℃

    Humidity (no condensation)

    5%~90% RH

    Dimension

    96(L)x70(W)x24(H)mm

    Finishing

    Grit blast

    Color

    Black

    Weight

    TX:150g,   RX:150g

    Mean time between failures (MTBF)

    >30000 Hours
