Model 86 HDMI+DP+VGA Wall Plug Transmitter

Model 86 HDMI+DP+VGA Wall Plug Transmitter

The type 86 HDMI+DP+VGA wall plug transmitter developed and produced by BeijingHCSTCOMco., LTD adopts the design of mixed input and integrates the latest HDBaseT technology, which can convert the input HDMI, VGA signals, and audio signals into standard HDBaseT signals. This HDBaseT wall plug transmitter also supports POC power supply, can be obtained from matrix or other HDBaseT devices, and supports RS232 control.

  • Product Introduction
  • Model 86 HDMI+DP+VGA wall plug transmitter (HC-HDBT-WALL-B-70T)



    1. Product introduction

    The type 86 HDMI+DP+VGA wall plug transmitter developed and produced by BeijingHCSTCOMco., LTD adopts the design of mixed input and integrates the latest HDBaseT technology, which can convert the input HDMI, VGA signals, and audio signals into standard HDBaseT signals. This HDBaseT wall plug transmitter also supports POC power supply, can be obtained from matrix or other HDBaseT devices, and supports RS232 control. The addition of AC power interface can extend HDMI signal transmission by 70 meters with 4K ultra HD resolution and 1920×1080 60Hz/3D. Widely used in video conferencing, large screen display and multimedia display control system, high-quality image display engineering, medical image display and projection system; Suitable for airports, railway stations, sports centers, hotels and other long-distance video and information transmission systems.



    2. Product features:

    Support HDMI, DP, VGA signal 70/100 meters long distance transmission

    Support audio embedding, bi-directional IR and bi-directional serial port functions;

    HDMI support 1080P 60HZ, 4K ultra HD and 3D, 36bit color depth;

    Support POC/POE power supply, can be used with hybrid matrix or other HDBaseT devices without external power supply;

    The signal switching function can be realized through the panel keys

    Standard 86 panel wall insert design;



     3. Technical parameters

    Description

    Model 86 HDMI+DP+VGA wall plug

    transmitter

    Input

    1×HDMI、1xDP、1xVGA+3.5mm、1xRS232

    output

    1×HDBT

    Standard protocol

    Support HDMI1.4



    Image Resolution

      480i --- 1080p up to 4K30Hz, 4K60Hz(4:2:0)

    Transmission distance

    70/100M

    Size

    86*86*40mm

    Weight

    260g(Pair)

    Power supply

     AC:110V-240V 50/60Hz DC: 12V

    power consumption

    3W

    Operating temperature

    -10℃ ~55℃

    Storage temperature

    ﹣20℃ ~60℃


    4、

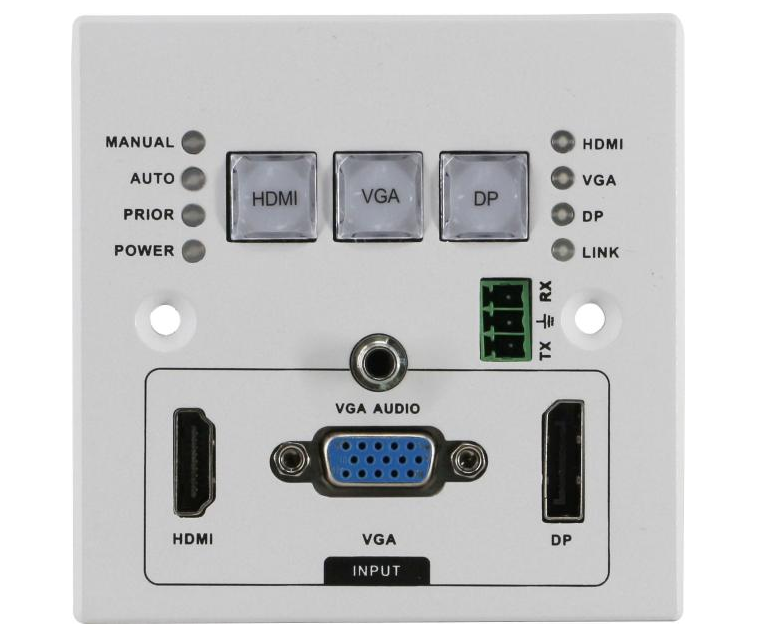

    Product picture



    5、
    Ordering Information

    Model:HC-HDBT-WALL-B-70T
