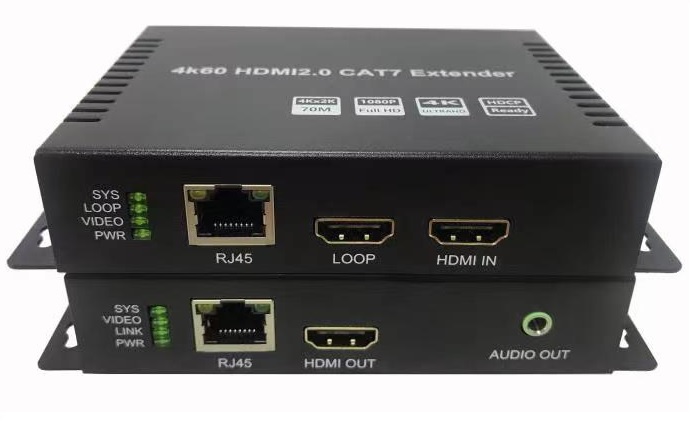

HDMI2.0 Extender over CAT6 70M(4K60 4:4:4)

HDMI2.0 Extender over CAT6 70M(4K60 4:4:4)

HDMI2.0 Extender over CAT6 70M(4K60 4:4:4)
  • Product Introduction

  • 1. Overview

    HDMI2.0 Extender over CAT6 or CAT6A/7 extends 4K 60Hz 4:4:4 HDMI 2.0 signals to remote places, point-to-point transmission mode supports transmitter 1 channel HDMI2.0 input and 1 channel loop,Receiver 1 channel HDMI2.0 output and 1 channel audio output. It can extend HDMI 2.0 video signals up to 70 meters and transmit them over CAT6 cables at 4K 60Hz resolution. High bandwidth, no latency, remote playback of real-time HD video. It is widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc.

    2. Products Feature

    ·Transmitter: 1-ch HDMI 2.0 input, 1-ch HDMI 2.0 loop out;

    ·Receiver: 1-ch HDMI 2.0 output, 1-ch audiounnesting output;

    ·1-ch RS232 data and 1-ch bidirectional IR optional;

    ·Transmission of 4K 60Hz HDMI signal 70m over CAT6;

    ·Support HDCP 2.2,compatible with 1.4;

    ·Support POC single-end power supply; DC12V,2A

    ·Desktop; Support 3U rack mounting.



    3. Technical parameters

    Items

    Specification

    Tansmitter

    1*HDMI in, 1*RJ45,1*HDMI loop out, 1-ch RS232 data and 1-ch bidirectional IR optional

    Receiver

    1*HDMI out, 1*RJ45,1*3.5mm audiounembeddingout, 1-ch RS232 data and 1-ch bidirectional IR optional

    HDMI compliance

    HDMI 2.0, compatible with HDMI 1.4

    HDCP compliance

    HDCP 2.2, compatible with HDCP 1.4

    Transmission Medium

    CAT6/CAT6A/CAT7

    Transmission Distance

    ≤70m

    Video Bandwidth

    18 Gbps

    Video resolution supported

    1280x960,1280x800,1280x768,1680x1050,1360x768,1366x768,1600x900,1024x768,800x600,3840*2160 60Hz

    Audio formats supported

    3.5mm audio unembedding (receiver)

    4K 60Hz4:4:4

    Support

    HDMI interface

    Type A

    Type of Cable

    CAT6, CAT6A, and CAT7, comply with ieEE-5688 standard

    Input DDC signal

    0.7-1.2Vp-p

    Input TMDS signal

    5Vp-p

    Power Supply

    TX and RX both have external power adapter

    Material

    Metal

    Voltage/Current

    DC12V/2A

     Power Consumption

    10W

    Working temperature

    -0℃～50℃

    Humidity (no condensation)

    0～90%

    Dimension

    110(L) x80(W) x 26.5(H)mm

    Net weight

    Tx: 0.3kg       Rx: 0.3kg

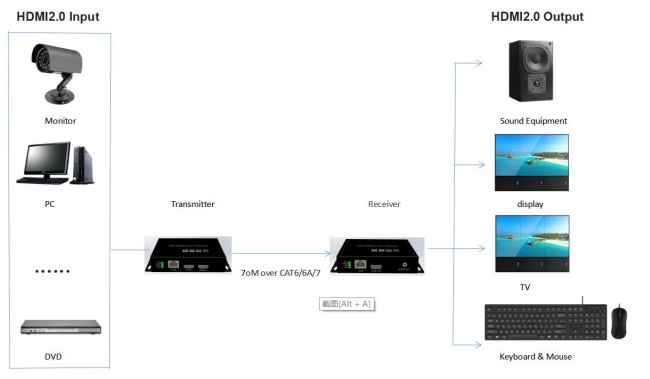

    4. Topological graph



    5. Application

    Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank, Digital FPDs and projectors in conference room and auditorium, Kiosk with digital FPDs showing full motion graphic displays from remote systems, PDP displays for information in public sites, LED signboards in streets and in stadiums.
