location:Homepage / AV Product
AV Product

4-Port DVI KVM Switcher with Audio

4-Port DVI KVM Switcher with Audio

4-Port DVI KVM Switcher with Audio

  • Product Introduction

  • 4-port DVI KVM switcher


    1、Description

    4-port DVI KVM switcher is produced with high quality by Beijing HCSTCOM company designed with digital circuit solution. It could support 4 groups of DVI video, audio, mic, USB input with 1 group output. In addition it supports local USB2.0 input. The DVI KVM switcher is widely used in video conference, multimedia display control system, medical monitor system, projection system, remote command center control system of airports, train stations, electric power center and so on.


    2、Feature:

    Support 4-ch DVI input, 1-ch DVI output

    Support audio Mic, USB keyboard and mouse

    DVI video support max 1920X1200 resolution and compatible with lower

    Support panel button control or keyboard hot key control

    Support LED indication for switching status

    Adapt 1U standard rack mount, optional DC 12V power supply

    Work with our DVI KVM fiber or catx extender for remote transmission system

    3、Specification

    Name

    4-port DVI KVM Switcher

    Input

    4×DVI、4xAudio、4xMIC、4xUSB;1x U Disc

    Output

    1×DVI、1xAudio、1xMIC、2xUSB

    Video Standard

    SupportDVI1.0andHDMI1.3

    Resolution

     1280*720、1280*1024、1920*1080 @60Hz、

    up to 1920*1200@60Hz

    DVI cable

    Suggest5-10meter

    Hot Key

    Support

    U-disk

    USB2.0 standard, one port

    Size

    485*230*44.5mm(1U)

    Weight

    1500g

    Power supply

     AC220Vor DC12V

    Power Consumption

    10W

    Working Temp

    -10℃~50℃

    Storage Temp

    ﹣20℃~60℃



    4、Product Picture

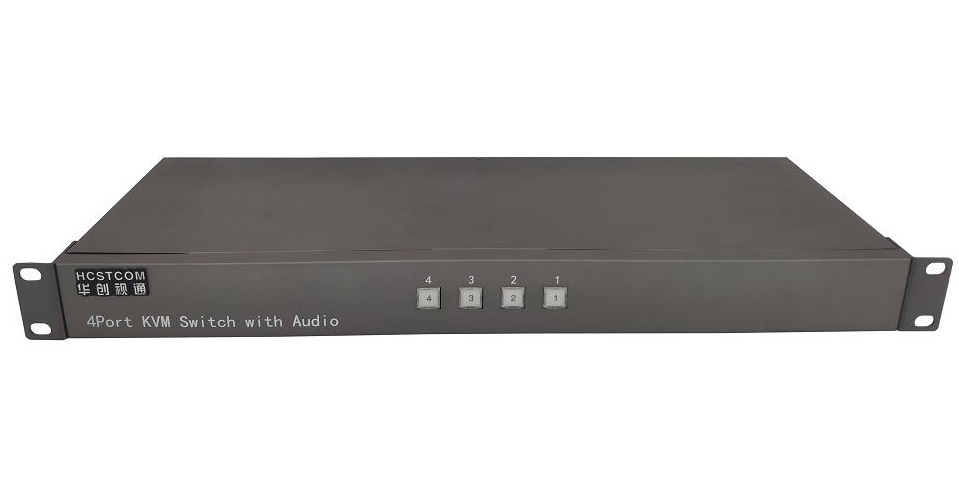

                                   Front Panel



                                   Rear Panel


    5、Order Info:

    Model:HC401DVI-KVM

    Spec:Support 4-ch DVI input, 4-ch audio/mic input, 4-ch USB input,  1-ch USB for U-disk input, 1-ch DVI output, 1-ch USB output, 1-ch audio/mic output, 1U rack mount
